Home Products Cold Rolled Steel Coil

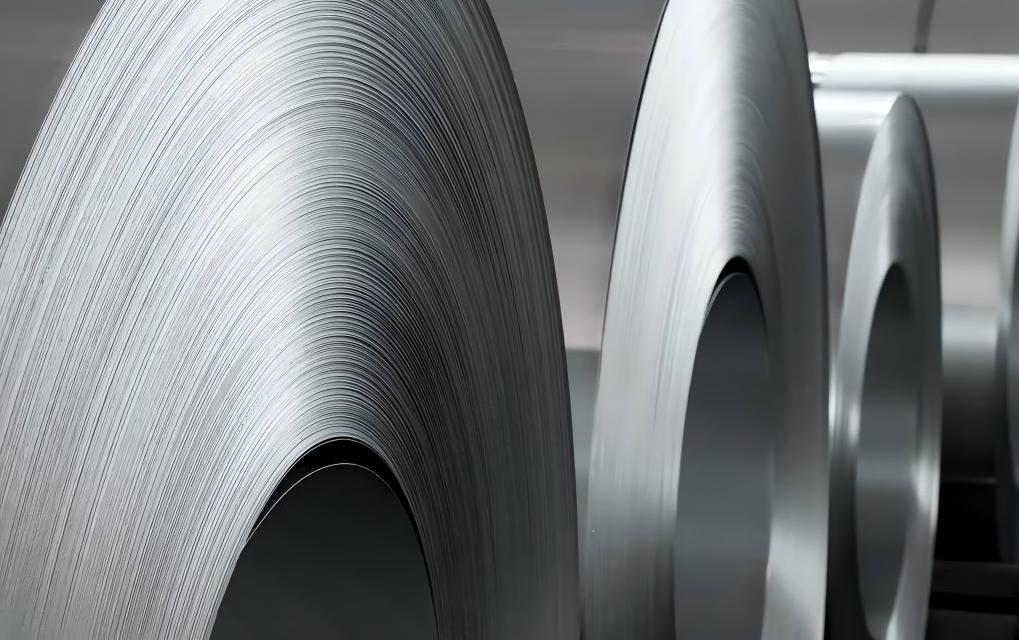

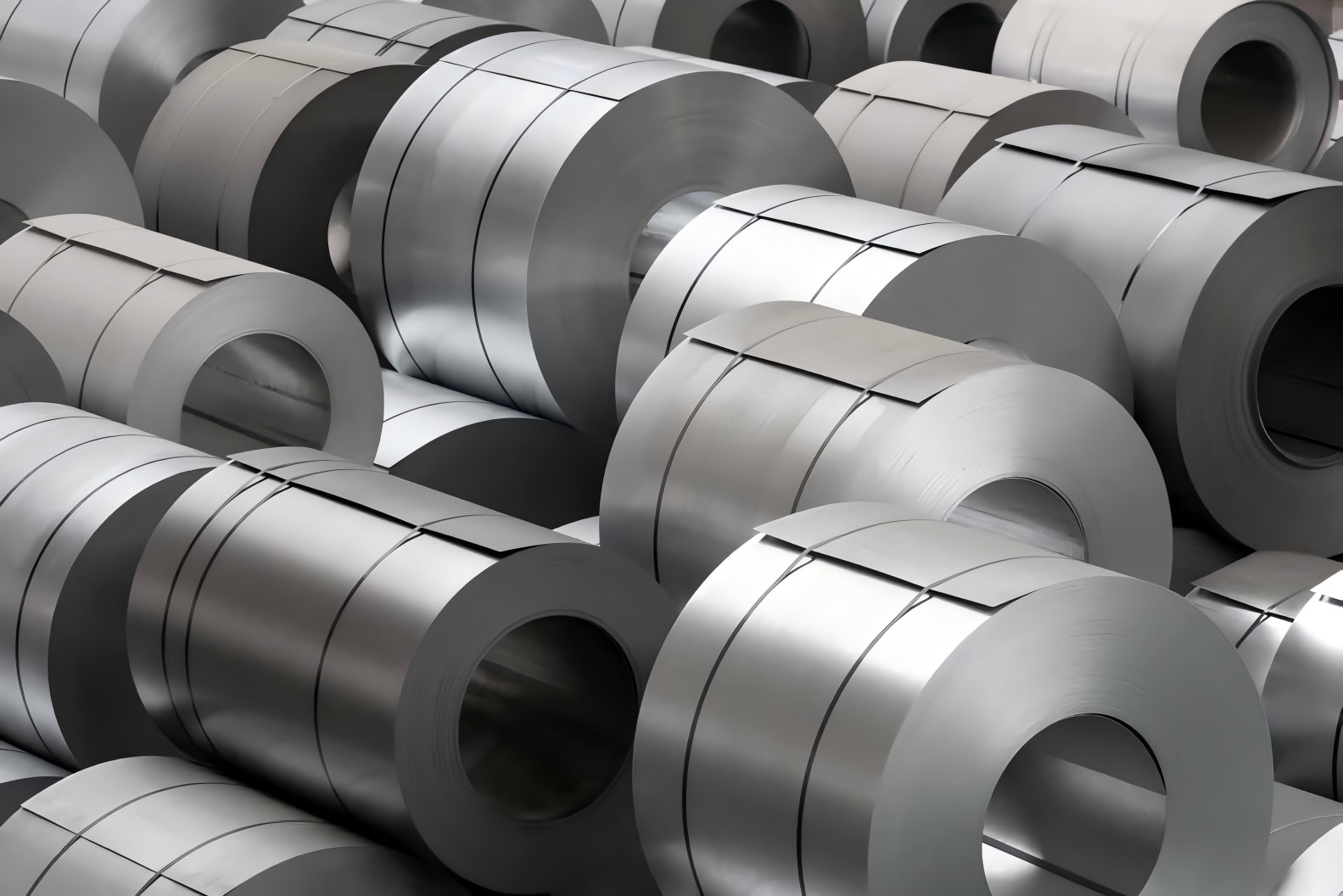

Cold Rolled Steel Coil

Cold Rolled Steel Coil

HONGSHENG'S Cold Rolled Steel has good performance with high flatness and surface finish.

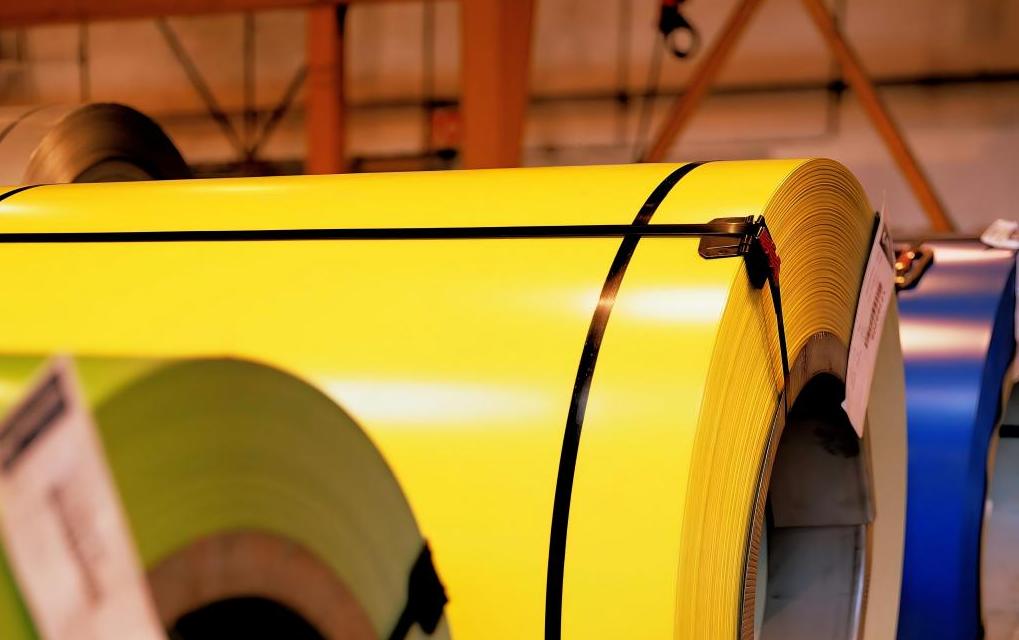

It has clean and bright surface and is easy to be coated and plated. Cold rolled steel is a high quality substrate for galvanized and color coated steel, and is also used in automotive, packaging, construction, household appliances and other industries, it is an ideal choice for high-end manufactured products.

Inquiry now

Cold Rolled Steel A high-quality manufacturing choice

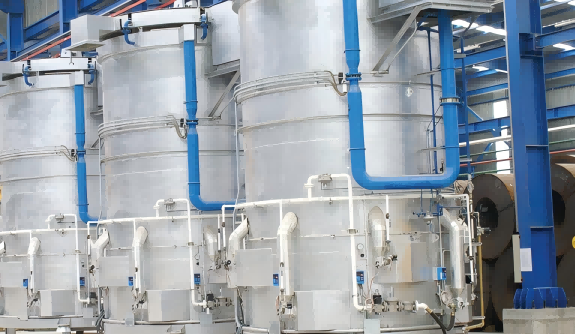

The Cold Rolled Steel manufacturing process was developed during the industrial revolution and has been continuously improved since mass production began in the early 20th century. Hongsheng using a pickling and six-stands tandem cold-rolling line to process the hot rolled steel, followed by a batch annealing treatment, which gives the coils a smooth surface and good performance, making them ideal for high-end manufacturing products.


THICKNESS 0.15-2.5mm
WIDTH 800-1300mm
GRADES

DC01/DC03

DC04/DC05/DC06

SURFACE FINISH

Bright Finish (B)

Dall Finish (D)

COIL ID 508mm/610mm
COIL WEIGHT 5.0-25.0MT




Commercial Quality

Properties according to EN 10 139



DC01 | 1.0330

Grade DC01 is a commercial quality grade. With some ductility, they are suitable for comercial purposes and suitable to simple forming, bending or welding.

Steel type

Grade

Tensile strength

/MPa

Material number
DC01 270-410 1.0330

Chemical composition

C Mn P S
0.12 0.50 0.045 0.045






Drawing Quality

Properties according to EN 10 139



DC03 | 1.0347

Grade DC03 is a drawing grade. With more ductility than the common ones, they are used for drawing purposes and suitable to manufacturing parts through drawing and relatively complicated deforming.

Steel type

Grade

Tensile strength

/MPa

Material number
DC03 270-370  1.0347

Chemical composition

C Mn P S
0.10 0.45 0.035 0.035

Deep Drawing Quality

Properties according to EN 10 139



DC04 | 1.0338

Grade DC04 is produced with carbon content less than DQ quality, which makes it suitable for producing deep-drawn parts. With more ductility than the drawing ones, they are used for deep drawing purposes and suitable to manufacturing parts through deep drawing and complicated processing.

Steel type

Grade

Tensile strength

/MPa

Material number
DC04 270-350  1.0338



Chemical composition

C Mn P S
0.08 0.40 0.030 0.030








Extra Drawing Quality

Properties according to EN 10 139



DC05 | 1.0312

Grade DC05 is an extra drawing grade. With more ductility than the deep drawing ones, they are used for extra deep drawing purposes and suitable to manufacturing parts through extra deep drawing and more complicated processing.

Steel type

Grade

Tensile strength

/MPa

Material number
DC05 270-330  1.0312

Chemical composition

C Mn P S
0.05 0.35 0.025 0.025






Supreme Extra Drawing Quality

Properties according to EN 10 139



DC06 | 1.0873

Grade DC06 is a supreme extra drawing grade. With more ductility, deep drawing capability and extension ability than the extra deep drawing ones, they are used for supreme extra deep drawing purposes.

Steel type

Grade

Tensile strength

/MPa

Material number
DC06 270-330  1.0873
