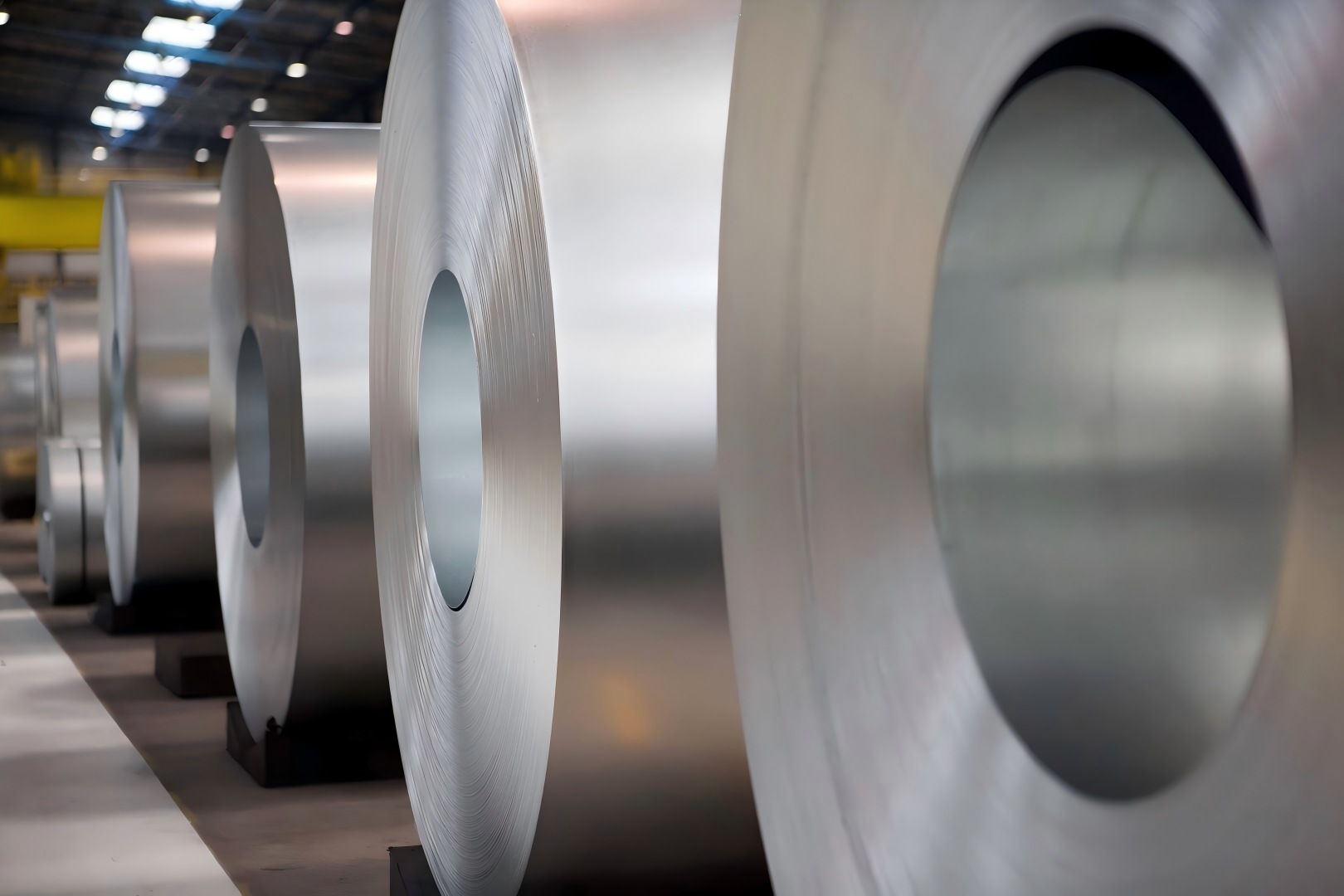

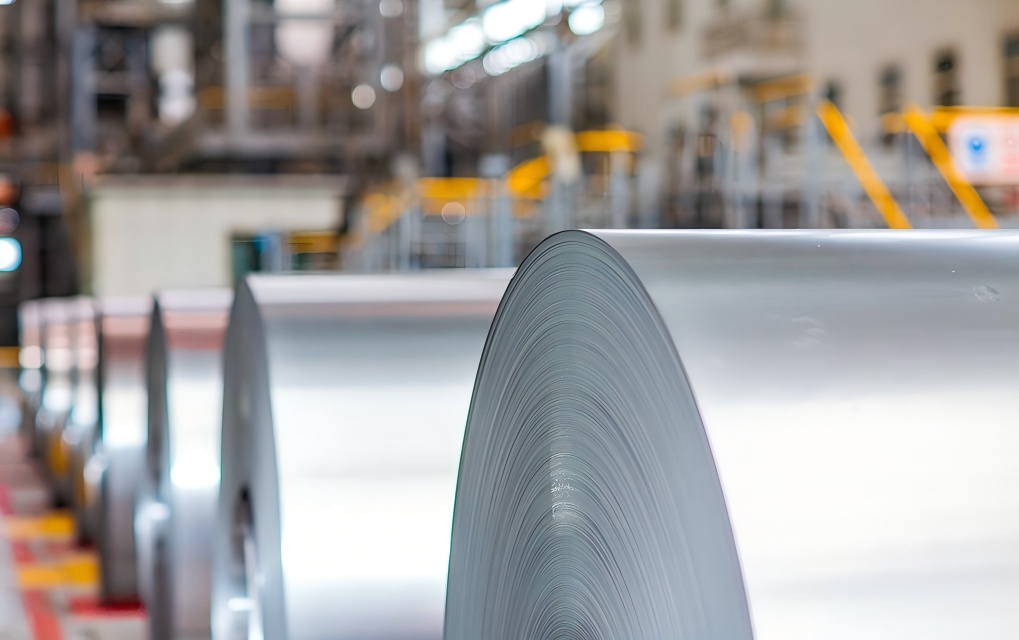

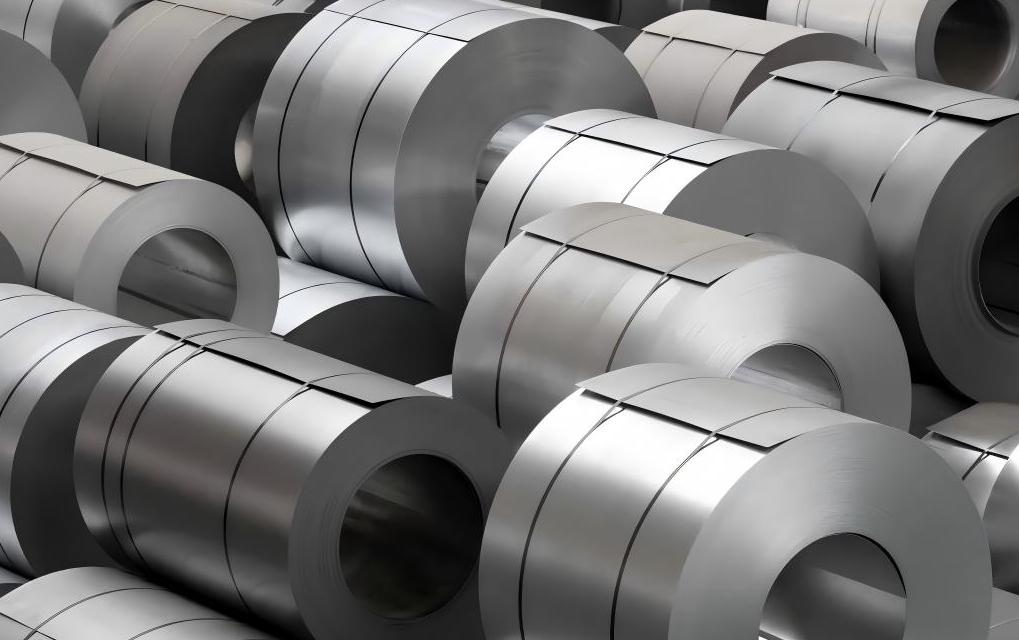

Zn-Al-Mg Coated Steel Coil

NOMINAL THICKNESS	0.15-2.5mm
NOMINAL WIDTH	800-1300mm
GRADES	DX51D/DX52D/DX53D S250GD/S350GD/S550GD
COATING MASS	30-220g/m2
NOMINAL INSIDE DIAMETER	580mm/610mm
COIL WEIGHT	3.0-8.0MT

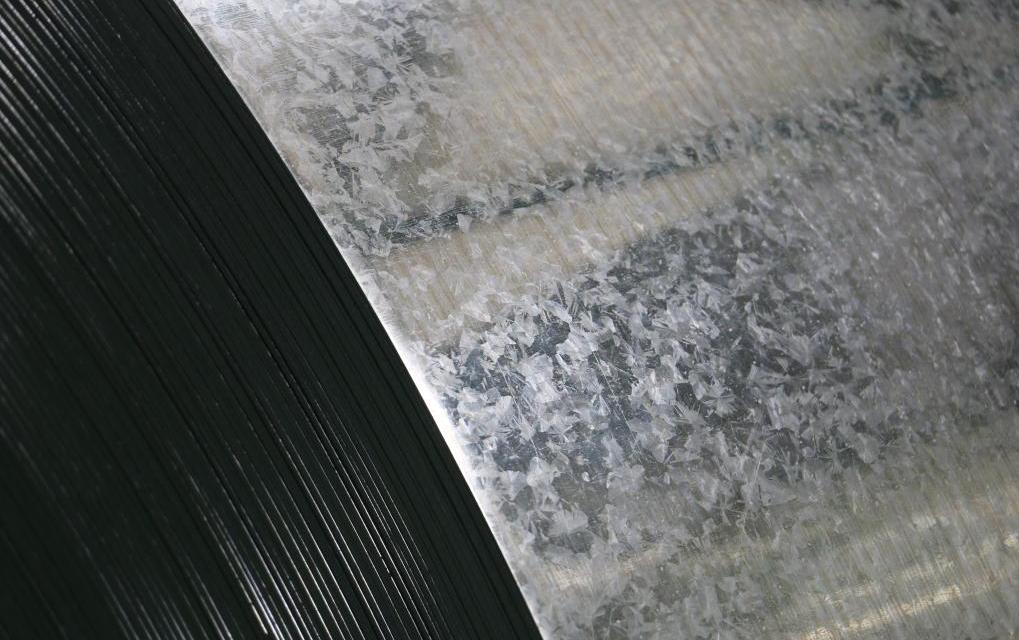

SPANGLE	MINIMIZED(ZERO)
PASSIVIZATION TYPE	CHROMATED, NON-CHROMATED

-

Zinc and zinc-aluminium-magnesium coatings in salt spray test

The hot-dip coated deep-drawing steels of the DX grade family according to EN 10346 offer excellent forming properties and good aging resistance. The mechanical properties of the individual deep-drawing steel grades are characterized by the level of yield strength and tensile strength as well as by assured minimum values of elongation at break.

Low-carbon steel for cold forming

Properties according to EN 10 346



DX51D | 1.0917





Grade DX51D is a machine folding grade and is suitable for simple craft forming work as well as for the production of simple profile shapes. DX51D is generally applicable in mechanical and structural engineering, e.g. for ventilation technology, air conditioning systems, switch cabinets, electrical industry, household appliances and steel furniture.



Steel type

Grade	Tensile strength Rm MPa	Surface finish	Material number
DX51D	270-500	+Z, +AZ, +ZM	1.0917



Chemical composition

Low-carbon steel for cold forming

Properties according to EN 10 346



DX52D | 1.0918





Grade DX52D is a drawing grade and can be used for drawing, stamping and profiling difficult parts.



Steel type

Grade	Tensile strength Rm MPa	Surface finish	Material number
DX52D	270-420	+Z, +AZ, +ZM	1.0918



-

Chemical composition

C	Si	Mn	P	S	Ti
0.12	0.50	0.60	0.10	0.045	0.30



---

Low-carbon steel for cold forming

Properties according to EN 10 346



DX53D | 1.0951



Grade DX53D is a deep-drawing grade that meets high demands on formability and is particularly suitable for the production of difficult profiles with greater thicknesses.



Steel type

Grade	Tensile strength Rm MPa	Surface finish	Material number
DX53D	270-380	+Z, +AZ, +ZM	1.0951

-

Chemical composition

C	Si	Mn	P	S	Ti
0.12	0.50	0.60	0.10	0.045	0.30

---





---

The hot-dip coated steels of the S grade family according to EN 10346 are used in civil engineering. The steels are classified according to increasing values of the minimum proof stress Rp0.2 from 220 to 550 MPa. They are used in construction, mechanical engineering and vehicle construction.

Structural steel

Properties according to EN 10 346



S250GD | 1.0242



Grade S250GD is a structural steel with a yield strength of at least 250 MPa.

Steel type

Grade	Proof stress Rp0,21) MPa min.	Tensile strength Rm2) MPa min.	Surface finish	Material number
S250GD	250	330	+Z, +AZ, +ZM	1.0242



Chemical composition

C	Si	Mn	P	S
0.20	0.60	1.70	0.10	0.045





•
•
•
•

Structural steel

Properties according to EN 10 346



S350GD | 1.0529



 Grade S350GD is a structural steel with a yield strength of at least 350 MPa.

Steel type

Grade	Proof stress Rp0,21) MPa min.	Tensile strength Rm2) MPa min.	Surface finish	Material number
S350GD	350	420	+Z, +AZ, +ZM	1.0529



Chemical composition

C	Si	Mn	P	S
0.20	0.60	1.70	0.10	0.045

Structural steel

Properties according EN 10 346



S550GD | 1.0531



Grade S550GD is a structural steel with a yield strength of at least 550 MPa.



Steel type

Grade	Proof stress Rp0,21) MPa min.	Tensile strength Rm2) MPa min.	Surface finish	Material number
S550GD	550	560	+Z, +AZ, +ZM	1.0531



Chemical composition

C	Si	Mn	P	S
0.20	0.60	1.70	0.10	0.045
